Foil Drive Assist Slim (Base Kit)
The Assist Slim is the lightest, performance-focused model designed to preserve the weightless and natural feel of foiling while still providing plenty of thrust and runtime when used efficiently.
Note: This is a Base Kit ONLY, no motor or battery included:
Built for riders who prioritize responsiveness, agility, pumping, and minimal drag, the Slim excels in short, powerful bursts to get on foil before transitioning to pure glide. It offers the same peak power as the Assist MAX in a thinner, more compact system. Ideal for experienced riders who value balance, light weight, and reactive carving in surf, wake, windswell, and flatwater.
Why a Base Kit?
1. Purchasing an Integrated Mast - The base kit does not include a motor allowing you to not double up when you buy your mast!
2. You're upgrading or adding to your fleet - If you already own Slim batteries and motors, but simply want to add another system to get another board set up, this is a great option!
3. Full Customization - The base kit provides a great base to build out your kit yourself
Specs:
- System Nominal Voltage: 40V
- Battery Capacity Range: 166-241Wh
- Max Thrust: 26.5kg / 58.4lbs
- Top Power to Weight Ratio (Thrust/Weight): 7 N/KG
- Minimum Install Weight*: 3.75kg / 8.26lbs with Slim Performance
- Dimensions with Battery: L510x W125 x H35mm
- App Compatibility: Foil Drive App, Android and IOS
- Water Rating: IP68 Water and Dust Resistance

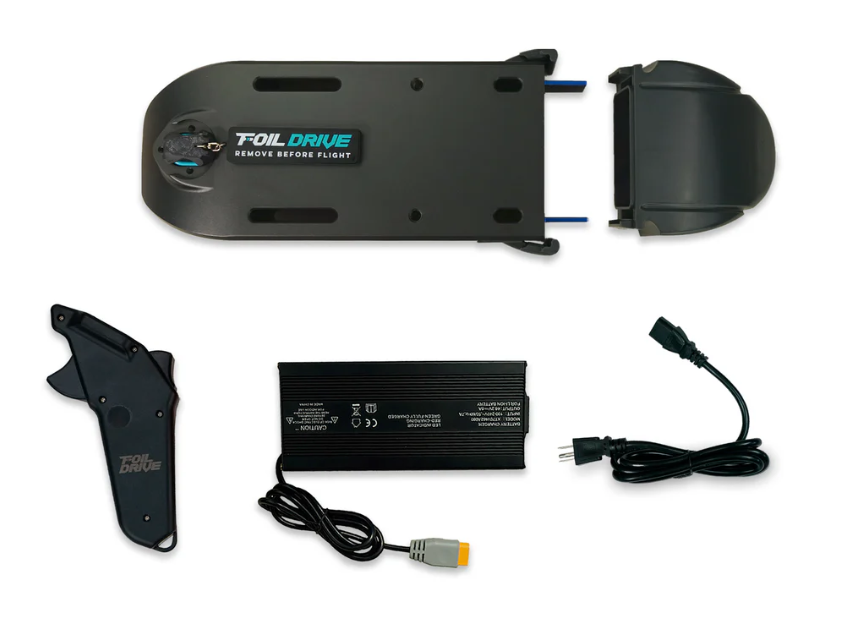

What's Included:
*NO BATTERY*
*NO MOTOR AND PROPELLERS*
*Choice of Charger AC Lead*
- US Plug Type
- AU Plug Type
- EU Plug Type
- UK Plug Type

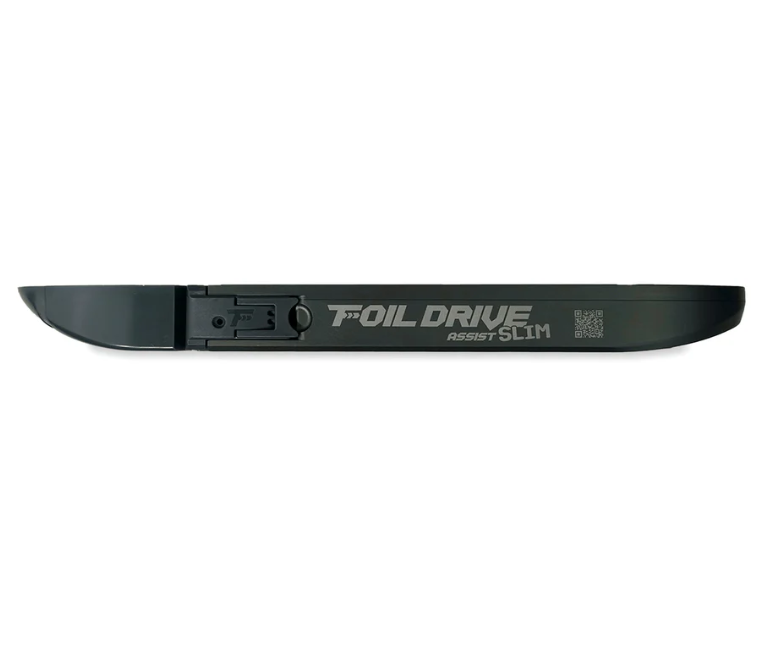

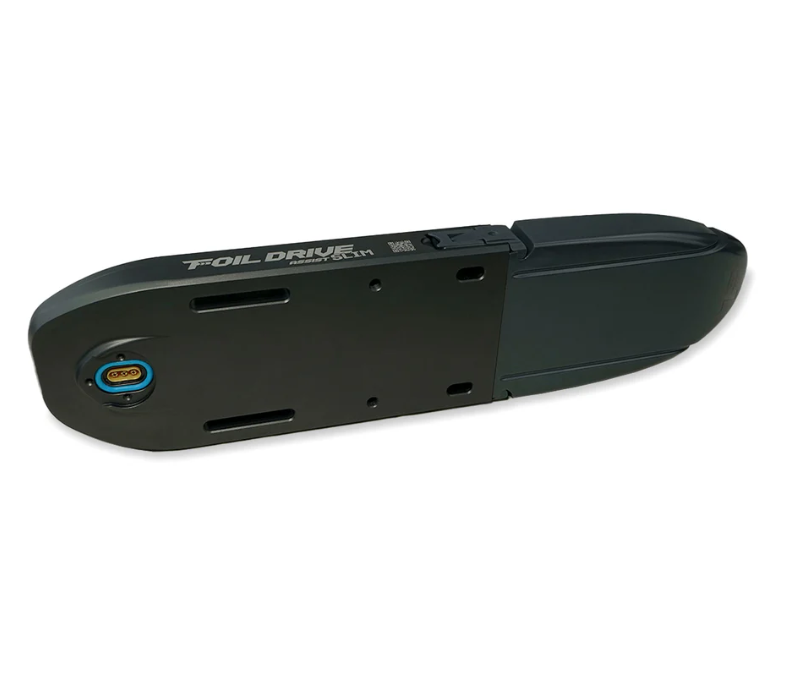

Foil Drive Assist Slim
Motor Plug Protector with Keychain
40v Standard Foil Drive Charger 4amp
Nose Cone C
Nose Cone D
Universal Motor Pod - Rear
Universal Motor Pod - Short Nose
Universal Motor Pod - Long Nose
Universal Motor Pod Keys
V3 Wireless Throttle Controller
Controller Wireless Charge Pad and Micro USB Cable
Controller Wrist Strap
2x Mast Cable Guide 23cm each
2x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts
4x M8 Assist Slim Mast Plate Bolts 60mm
4x M6 Assist Slim Mast Plate Bolts 60mm
Foil Drive 2.5mm Driver
Pick Tool
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth
Foil Drive Gen2 Carry Case
Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)
Spare Parts Bag
- 2x O-Ring Seals - Foil Drive Assist Slim
- 2x Latch Assembly - Foil Drive Assist Slim
- 3x Motor Plug Bolts (M4 x 10mm)
- 7x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 4x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)
Compatible With:
Assist Slim
Slim Performance Battery
Slim Endurance Battery
Slim Travel Battery
28 OR 40 Volt Charger (Depending on Battery)
